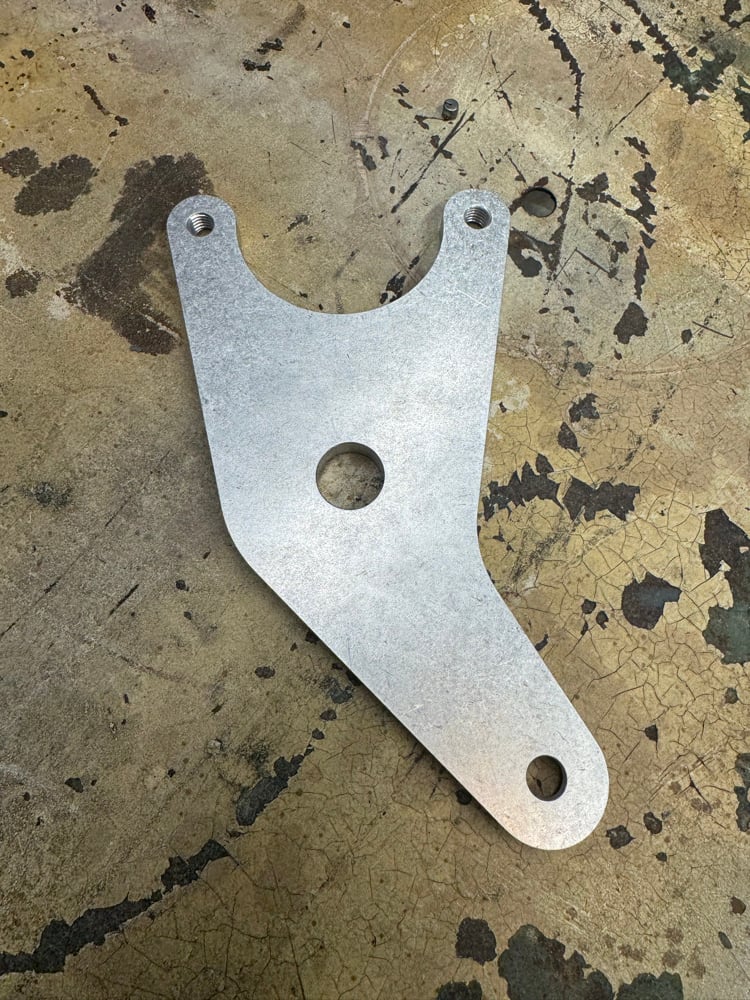

UM-36 Swingarm Style Brake Bracket 10”

This is Unity’s version of a swingarm style brake bracket for 10” rotors. The fits calipers with a 3.5” bolt spacing and a bikes with a 3/4” axle. The most common application is a swingarm shovelhead with a PM caliper, but this will work on rigid bikes and swingarm panheads if you add a brake stay tab.

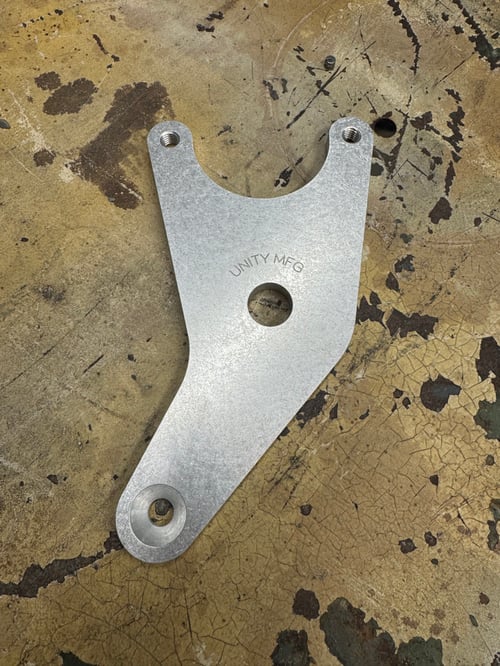

The brake stay bolt hole is countersunk for a 3/8” fastener to allow for maximum clearance between the fastener and the rotor.

This is machined out of 6061 aluminum in Virginia, USA.

(Caliper and fasteners are not included.)
